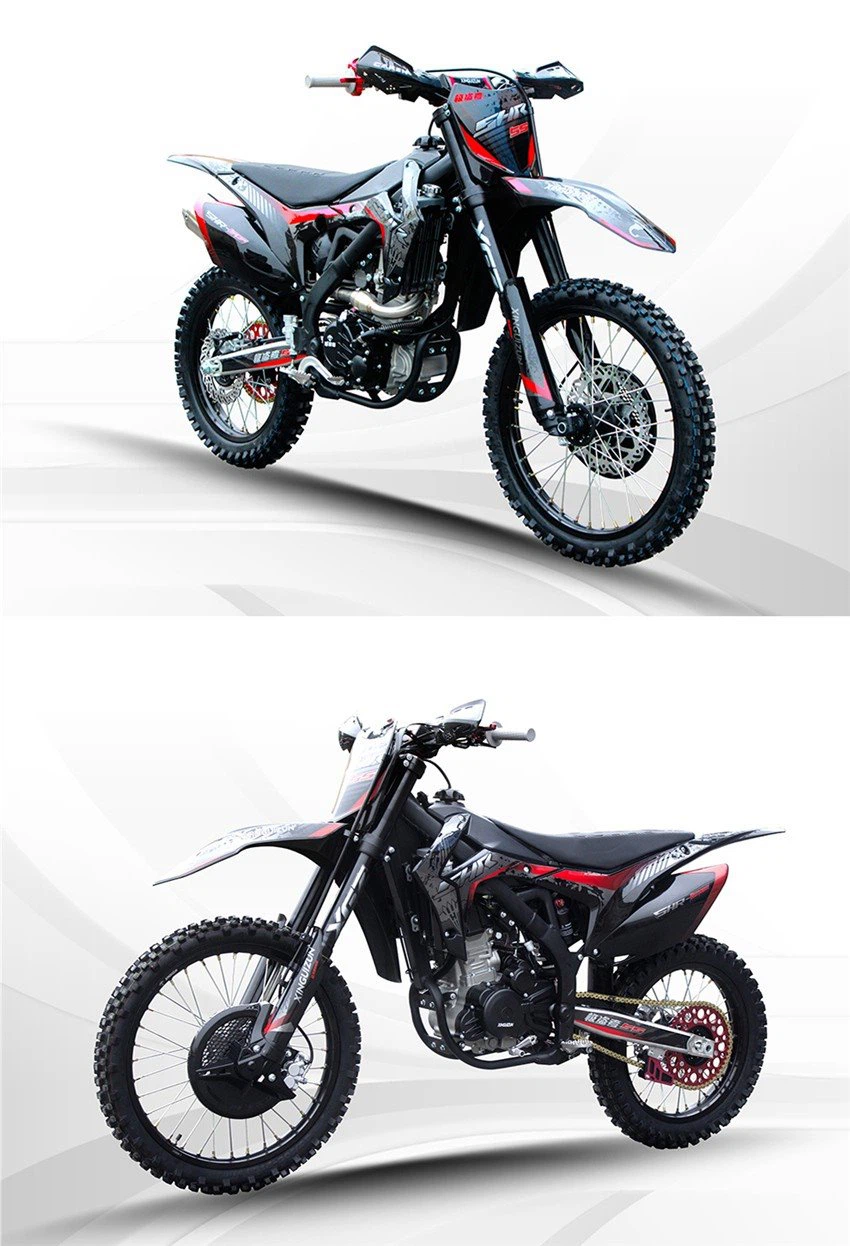

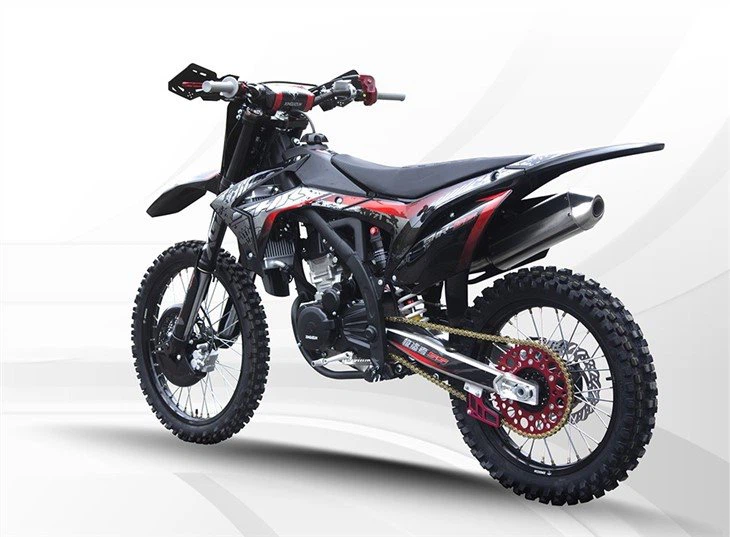

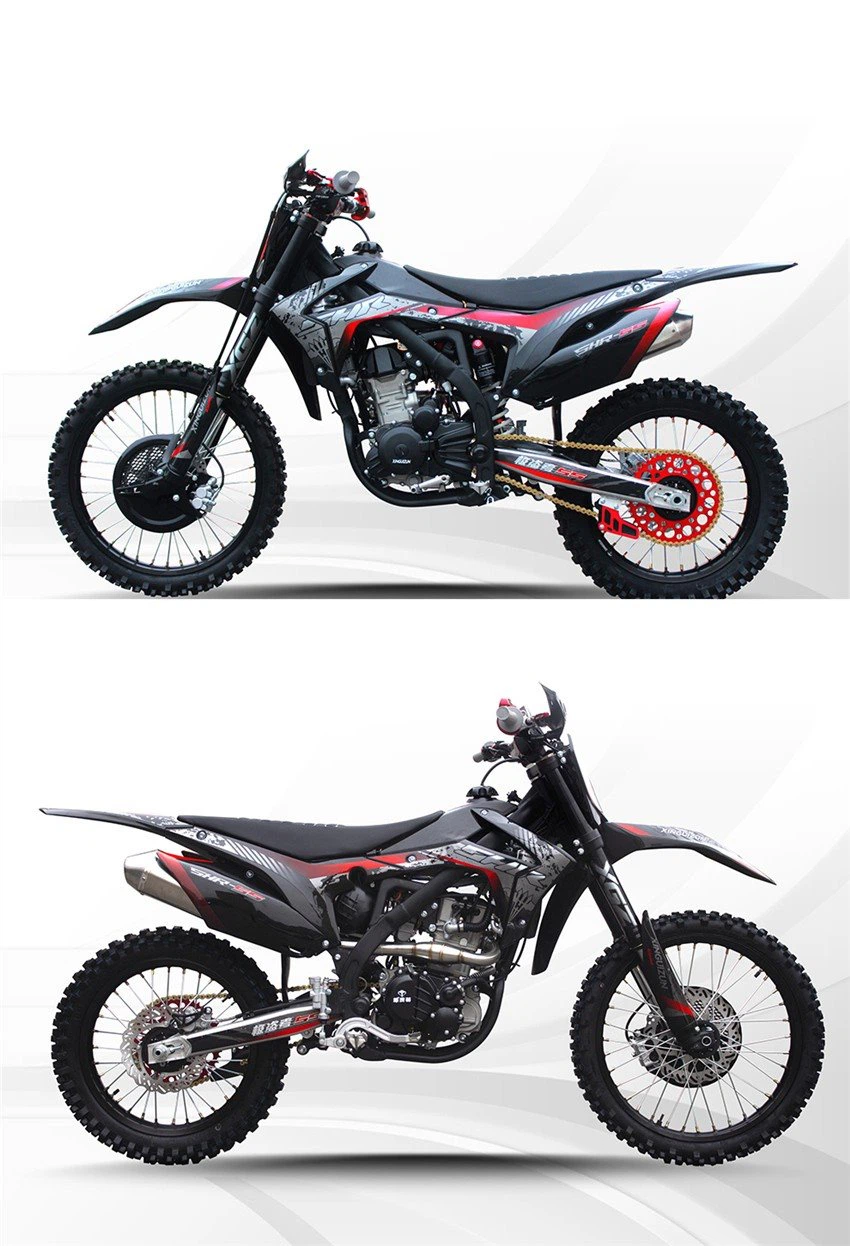

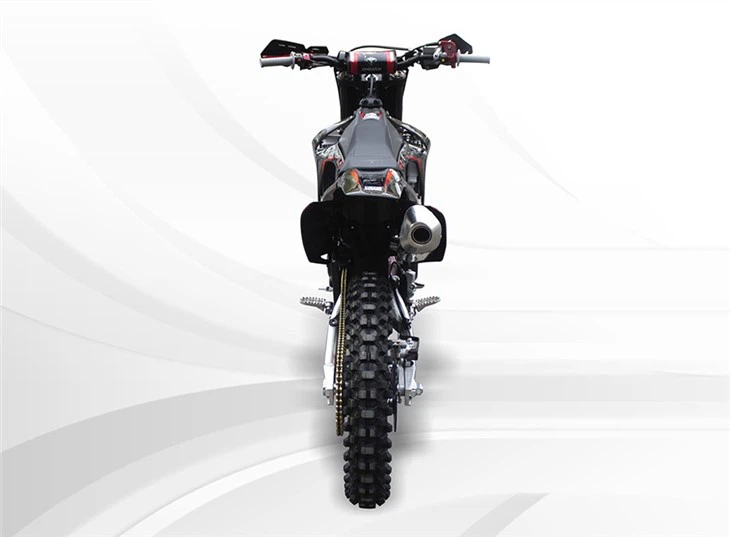

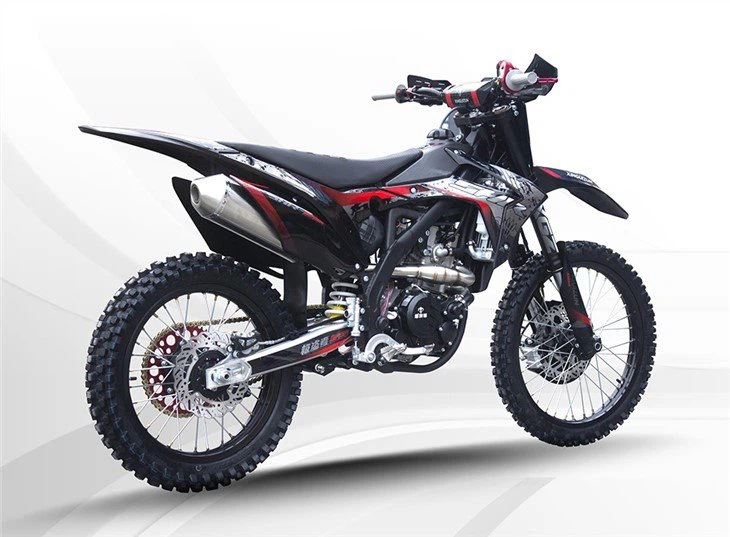

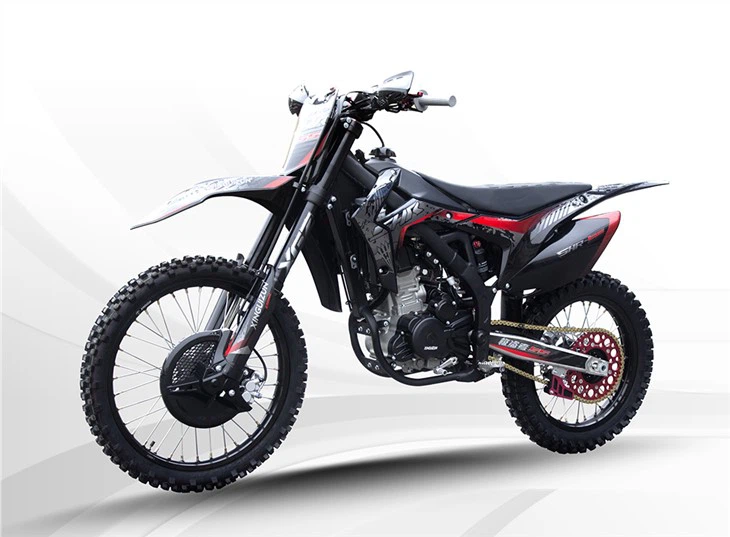

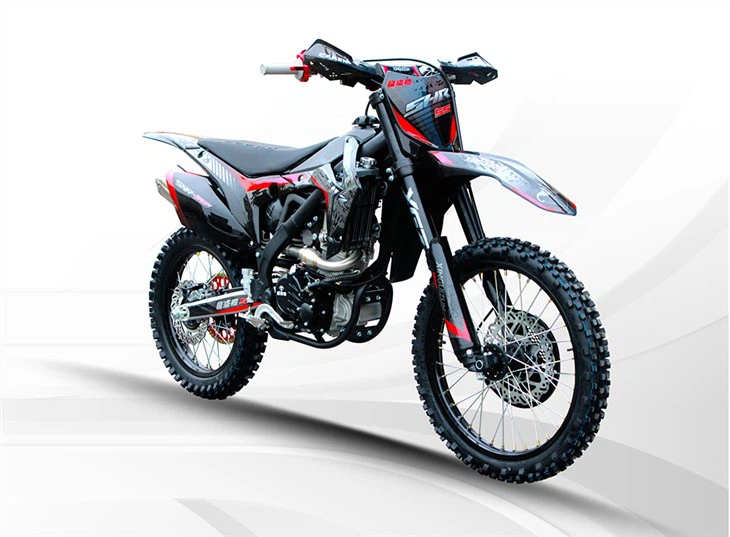

Hill Climb Racing Motorcycle
Khoom parameters
Standard Configuration | |
Cav | ZONGSHEN CBS300, SOHC, Kua txias, Plaub Stroke, Plaub Valve, Rau Gearshift Balance Ncej |
Kev khiav tawm | 2 79,5ml |
Pobzeb × Stroke | 74 × 65mm |
Max.Power | 18.5 / 8500kw / (r / min) Lub cev muaj zog |
Max. Torque | 23/7000N.m/(r/min) |
Compression Ratio | 10.7:1-11.3:1 |
Txoj Kev Lubrication | Force-Feed & Txau |
Clutch hom | Mannual ntub Multi-Plate |
Gearshift Hom | Tsis tu ncua Mesh, 2stage kis tau tus mob, 6 gearshift |
Ignition hom | Capacitive Zog Cia Hom |
Pib hom | Hluav taws xob |
Ncej | High Strength Steel Tube Ncej |
Muffler | Stainless hlau thiab Aluminium Alloy Backpressure Muffler |
Pem hauv ntej Shocks | Invert Upper, Lower Ob Chav Damping Pem Hauv Ntej Shock Absorber |
Tsheb Shocks | Ib leeg Chamber, Sab Nraud Airbag Shock Absorber, Upper thiab Lower Damping Adjustable |
Pem hauv ntej Disk Nres | Ob chav Piston Pump Hydraulic Pem Hauv Ntej Nres System |
Tsheb Nres Tsheb | Tib Piston Pump Hydraulic Tsheb Nres Nres System |
Forks | Hniav Strength Aluminium Alloy Forks |
Rim | Qib 7 High Strength Aluminium Alloy Rim, CNC Drum Core, Pem hauv ntej 1.60 * 21 Tsheb 2.15 * 18 |
Lub log | XINGUIZUN Deep Tooth Tyre, Pem hauv ntej 80/100-21 Tsheb 100/90-18 |
Roj teeb | Colloid roj teeb 12V6AH |
Length * Dav * Qhov siab | 2165mm * 805mm * 1225mm |
Av Clearance | 300 hli |
Rooj Qhov siab | 9 20mm |
Roj Tank Volume | 7L |
Log Base | 14 40mm |
Ncua hnyav | 110kg ib |
Product details
Steering kem:
Aluminium alloy high-strength forged steering kem muaj kev ruaj ntseg ntau dua rau precision machining.
Tsheb kauj vab:
Lub roob nce toj kev sib tw maus taus lub teeb yuag aluminium alloy hniav tiaj tus diav rawg yog siv, uas yog lub teeb thiab txuag zog, hloov tau yooj yim hauv kev tswj thiab kev ua haujlwm siab.
Log Hub:
Kev siv lub teeb yuag CNC pem hauv ntej thiab nram qab hubs, nrog CXCL bearings thiab thawj plua plav seals, tsis tsuas yog muaj kev ntxhib los mos zoo nkaus li, tab sis kuj muaj kev pabcuam zoo dua ntawm lub hubs thiab kev tsav tsheb zoo dua ntawm lub tsheb.
Log:
Lub roob nce toj sib tw maus taus lub log teeb tau txais "{0}}series" sub-black aluminium alloy nplhaib, nrog rau pem hauv ntej 21 thiab nram qab 18 (80/100-21 100/{90-18}) Xinguizun thawj sib sib zog nqus iav log tsheb, kom tag nrho lub tsheb muaj kev ua tau zoo ntawm cov av mos thiab cov av ntub dej. zoo tuav.
